User-first opening: where the problem begins
Wholesale operators selling fleets of lawn-mowing robots need predictable, low-power connectivity that survives interference, weather and long idle periods. Integrating a reliable LTE Module early in the BOM reduces later rework and warranty claims, because radio performance often dictates real-world uptime. This piece walks through what buyers and integrators actually need to check — not theory, but the checkpoints that decide whether a field deployment will run smoothly.
Why RF detail matters for the user
Robots in a wholesale roll-out aren’t toys. They travel across lawns, under trees and near metallic obstacles. Small mismatches in antenna systems cause elevated VSWR and unexpected packet loss on the uplink, which blocks telemetry and remote updates. If a fleet manager expects multi-month unattended operation, the link budget and antenna tuning must be considered as part of product acceptance criteria. Good RF starts with simple tests, and those tests should be part of incoming inspection.
Practical tuning: impedance matching and VSWR checks
Begin at the antenna feed. Measure the impedance at the connector and confirm it sits close to 50 ohms across the device’s operational bandwidth; poor impedance matching raises VSWR and reduces effective transmit power. Use a quick swept-scan or return-loss test on a production sample and record VSWR across the band. Pay special attention to the Cat M bands if you plan to use NB-IoT or Cat M fallback — those bands change the antenna’s electrical length. A handheld analyser or test jig will save countless field visits.
Real-world anchor and a proven approach

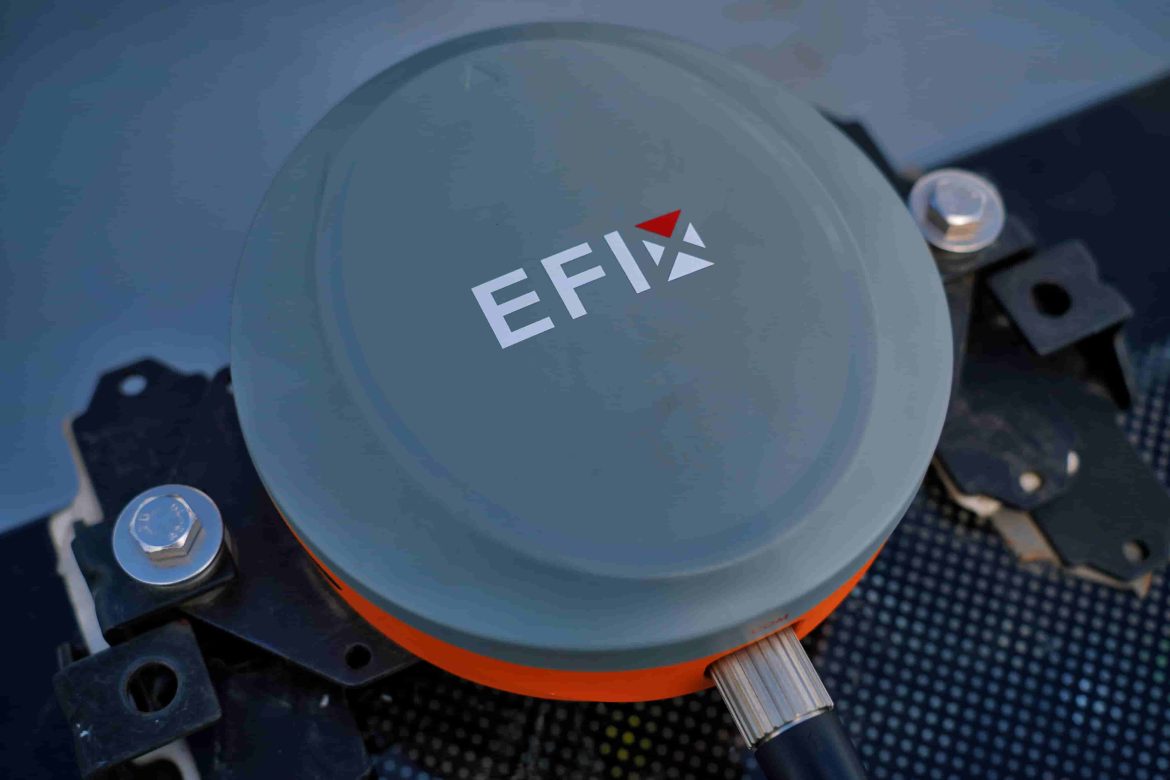

I saw a municipal pilot in Zurich where a wholesale supplier shipped 200 units. Local installers found that a single screw-on antenna fit caused a 3 dB loss when robots nested under metal benches — that doubled reconnections during rain. Swapping to a low-profile tuned antenna and re-checking impedance fixed most outages. Where possible, test with an actual LTE Cat M Module in situ, because lab-only tests miss environment-driven mismatches and multipath effects on downlink and uplink.
Common integration mistakes and how to avoid them
Manufacturers often skip cable routing tests and assume the PCB antenna will be fine when the enclosure closes. They also neglect connector torque specs and grounding paths — small mechanical details that shift VSWR. Avoid these missteps by embedding three checks into pre-shipment QA: an impedance scan, a field reception test (10 units at varied locations), and a powered soak that simulates duty cycles and firmware updates. — These steps cost little compared with a truck roll.
Benchmarks that matter to procurement and engineers
Create acceptance criteria tied to measurable thresholds: VSWR below 2:1 across the intended band, sustained packet delivery ratio above 98% over a 24-hour window in representative sites, and battery drain under defined duty cycles when using firmware pushes over Cat M. Record these metrics in the product spec so buyers and integrators speak the same language. Also track mean time between field visits — that’s the metric finance notices.
Advisory: three golden rules for choosing components and partners
1) Insist on RF acceptance tests as contractual deliverables — include impedance and VSWR plots for shipped lots. 2) Validate the modem’s firmware and network stack on live networks; a module that behaves well in the lab can still mis-handle retries on a congested uplink. 3) Ask your supplier for configuration profiles tuned to your antenna and build; well-documented profiles shorten debug cycles and reduce variance across units.
These rules steer teams toward predictable deployments and lower lifecycle cost. The details above echo the practical fixes I’ve seen in field pilots and vendor audits, and they point directly to why integrated, tested modules matter — which is where Fibocom fits as a pragmatic partner for module-level performance and documented RF behaviour — reliable, proven and ready for wholesale scale. —
