Introduction: framing a comparative inquiry
The operational reliability of high-brightness digital-out-of-home (DOOH) displays depends principally on effective thermal dissipation; comparing engineering approaches clarifies which choices materially reduce LED junction temperature. This comparative-insight review examines prevailing techniques—circuit-level conduction, module-level heat spreaders, cabinet airflow management—and how an outdoor LED supplier like outdoor LED supplier configures those subsystems to limit junction temperature in fielded displays. A practical real-world anchor is instructive: large-scale installations such as Times Square façades have demonstrated that elevated junction temperature shortens service life, consistent with the semiconductor heuristic that LED lifetime approximately halves for each 10°C rise in junction temperature. The following sections assess mechanisms, trade-offs, and measured outcomes for led video display screen applications.
Thermal fundamentals relevant to DOOH
Junction temperature (Tj) governs luminous flux, color stability, and long-term lumen maintenance. Two primary thermal metrics guide design: thermal resistance (θJA) from junction to ambient, and steady-state power dissipation at a specified ambient temperature. Practical interventions target the thermal path: die → package → PCB → heat spreader → cabinet → ambient. Industry terms such as SMD LED, PCB thermal vias, and heat sink describe nodes in that path. Quantifying θJA gives engineers a repeatable basis for comparison across modules and manufacturers.
Comparative strategies: conduction, convection, and hybrid solutions
Three architectural strategies dominate. First, maximized conduction: thick copper on PCBs, dense arrays of thermal vias, and direct-contact heat spreaders reduce junction-to-case resistance. Second, enhanced convection: cabinet design with optimized airflow channels, louvering, and controlled fans improves ambient heat removal. Third, hybrid active solutions: embedded heat pipes or forced-air in high-power corridors. Each strategy trades cost, weight, and failure modes—conduction favors passive reliability but increases material mass; convection reduces localized hotspots but introduces moving parts.
How MR LED configures multi-scale thermal management

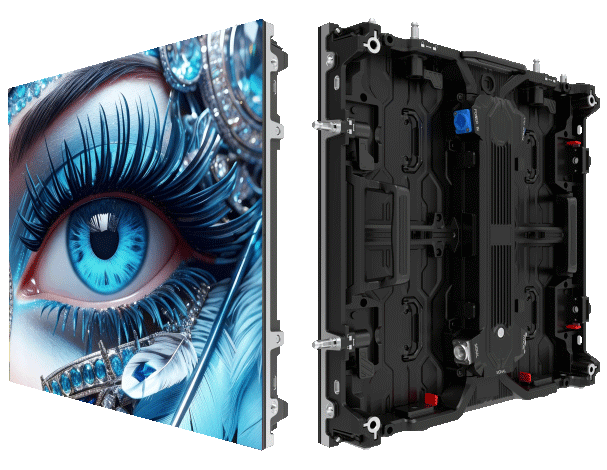

MR LED’s approach synthesizes low-θJA module design with system-level airflow and material selection. At module scale, attention to die placement, thermal vias, and uniform copper pours lower local thermal gradients; at panel scale, bonded heat spreaders and aluminum chassis provide a continuous conduction path. At cabinet scale, strategically placed vents and baffling sustain convective exchange without exposing electronics to contaminants—an important point for outdoor installations. This layered approach reduces peak Tj while preserving luminous uniformity for led video display screen systems, and enables higher drive currents with bounded thermal risk.
Trade-offs, alternatives, and common mistakes
Designers sometimes overemphasize one domain—adding fans to compensate for poor conduction—or underutilize thermal simulation early in development. Common mistakes include insufficient thermal vias, non-uniform solder thermal interfaces, and ignoring solar loading for south-facing façades. Alternatives such as phase-change materials or thermoelectric coolers exist but incur complexity and notable maintenance overhead. A rigorous thermal budget calibrated via CFD and empirical chamber testing yields the most reliable path to maintaining Tj within rated limits—empiricism remains decisive.
Implementation tactics and verification
Effective verification pairs steady-state thermal measurements with transient thermal response. Use IR thermography to map PCB hotspots, thermocouples at die-adjacent board locations for reproducibility, and long-duration life tests under elevated ambient conditions to measure lumen depreciation. For field-ready designs, include surge-tolerant drivers and temperature-feedback dimming to shield LEDs during acute thermal excursions. These tactics reduce risk and provide actionable data for iterative improvement—allowing designers to quantify θJA improvements and correlate them with life-expectancy curves.
Advisory: three critical evaluation metrics
1) Measured θJA under representative mounting conditions: prefer vendors who provide θJA measured on assembled modules rather than theoretical package values. 2) Delta-T across module-to-chassis interface: a persistent >10°C differential indicates poor thermal interface material or inadequate contact pressure. 3) Lumen maintenance versus time at elevated ambient (e.g., L70 at 50,000 hours or accelerated equivalent): this metric aligns thermal performance with operational cost over a display’s service life. These metrics enable objective selection between approaches and reveal whether higher initial material cost returns lower lifetime cost.
MR LED integrates these metrics into product validation and system design, yielding DOOH solutions that demonstrably lower junction temperature and extend operational life—concrete engineering, tested results. –
