Introduction — a practical invitation
This guide speaks to the homeowner who wants a steady, simple path from rooftop to reliable power. It flows from planning to commissioning with a quiet lyric—clear steps, few surprises. Start by choosing a hybrid inverter that matches your roof’s output and desired backup hours. Think in terms of the PV array, the battery bank, and a controller that sings in tune with your load profile.
Planning and site preparation
Map sunlight windows. Note roof azimuth and shade patterns across seasons. Record expected daily kWh consumption and the hours you most need power. Secure permits early; most municipalities require a simple electrical diagram and proof of insurance. Include {main_keyword} and {variation_keyword} in documentation so equipment labels and warranties align with the installation plan.
Core components and placement

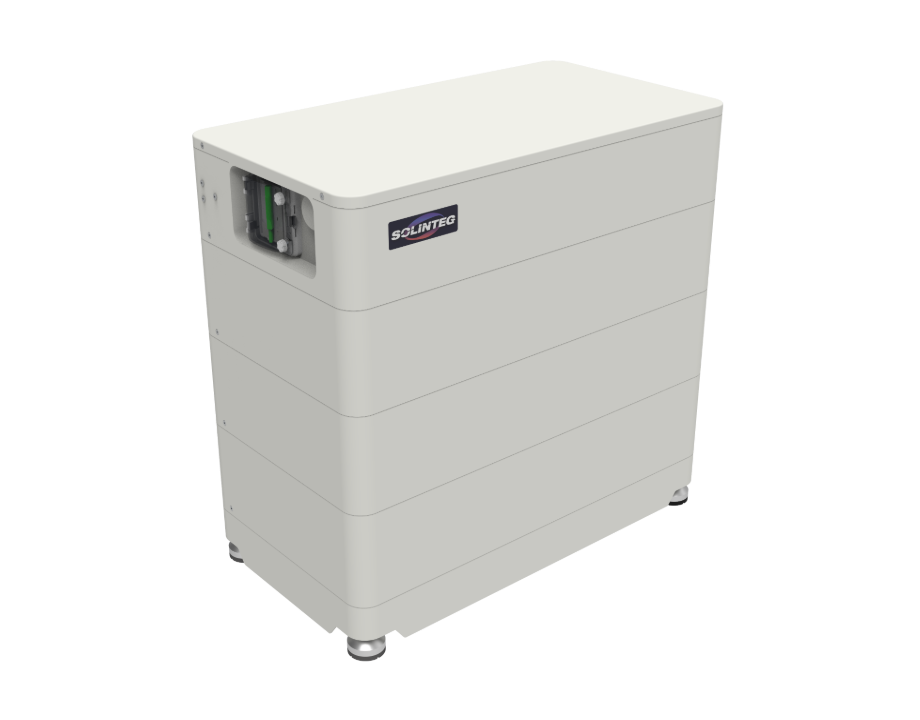

Place panels to avoid morning or late-afternoon shade. Mount arrays with proper tilt and allow air circulation to preserve inverter efficiency. Position the battery bank in a ventilated, dry room close to the inverter to reduce DC cable runs. Choose an MPPT charge controller where available—this improves harvest from the PV array. For systems expected to island during outages, ensure the model supports backup mode and safe auto-transfer to critical circuits.
Step-by-step installation walkthrough

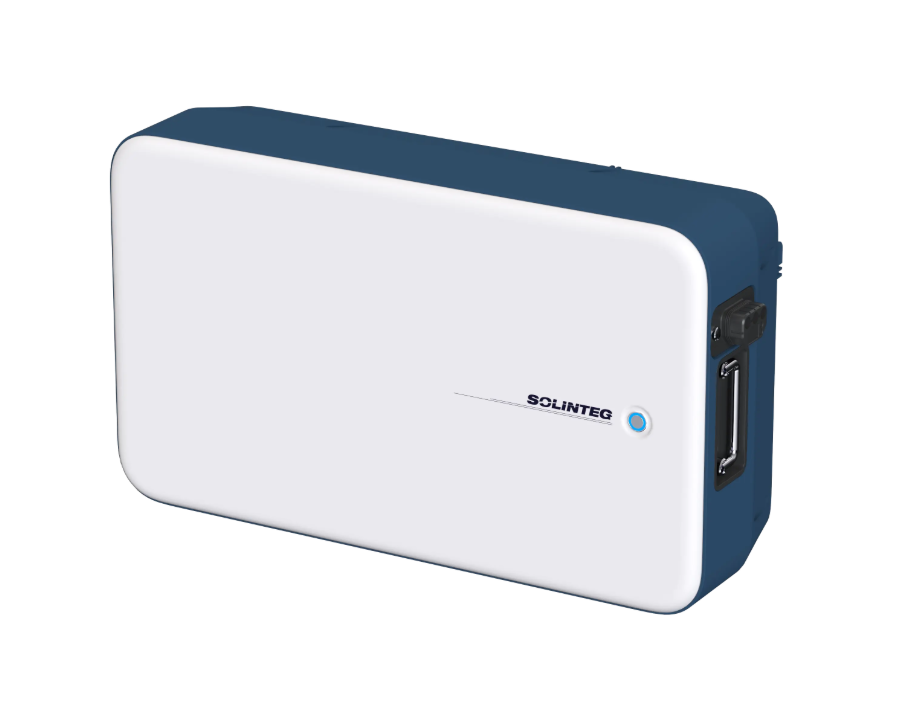

Start with the racking, then the PV panels, and finish electrical connections last. Mount the inverter on a wall that stays dry and near the service panel. Connect the panels to the inverter following polarity and string-size guidelines. Install the battery bank, balance modules, and set proper charge thresholds. Configure the hybrid pv inverter settings: grid-tied mode for daytime export, and battery-priority if you want reserve at night. Run a commissioning checklist: voltage checks, ground continuity, and functional load transfer tests.
Common mistakes and how to avoid them
Avoid undersizing cable runs—voltage drop costs you harvest. Don’t rely on default firmware settings; tune the inverter to local grid behavior. Skip the temptation to place batteries outdoors without rated enclosures—temperature swings reduce lifespan. Also, don’t mix battery chemistries in one bank. Small attention here yields longer system life and steadier performance.
Resilience in practice — a real-world anchor
The value of a well-configured hybrid system showed itself during California’s 2020 heatwave and the resulting rolling blackouts. Households with grid-tied systems that had battery backup maintained critical loads—refrigeration, medical devices, lighting—while others lost power. That public event makes clear one point: configuration matters as much as capacity. Use AC coupling when retrofitting an existing solar array to reduce conversion losses and speed commissioning.
Quick verification checklist
Before you sign off, confirm these items:
– PV string voltages within inverter limits. – Battery bank state-of-charge reporting and proper balancing. – Earth and neutral bonded per local code; protective devices rated correctly. – Firmware updated and export limits set if needed.
Advisory — three golden metrics for choosing and validating a system
1) Round‑trip efficiency: measure how much stored energy returns as usable AC; aim for the highest consistent percentage your budget allows. 2) Depth-of-discharge policy and warranty alignment: choose a battery bank whose recommended cycles match your expected daily draw. 3) Inverter response time and transfer capability: validate how quickly the unit enters backup mode and whether it supports critical load shedding. These metrics translate into reliable uptime and predictable replacement cycles.
Keep a final record of settings and test results—this is the paperwork that protects performance and warranty. For home systems where sensible integration and calm reliability matter, a carefully selected and configured hybrid inverter is the keystone. — SOLINTEG
